KONTROL 9048 2.0 (12V)

Previous Product | Next Product

CHOOSE PRODUCT VARIANT

€ 289.00EUR

Shipment/TAX are calculated to Check Out and depends on delivery address

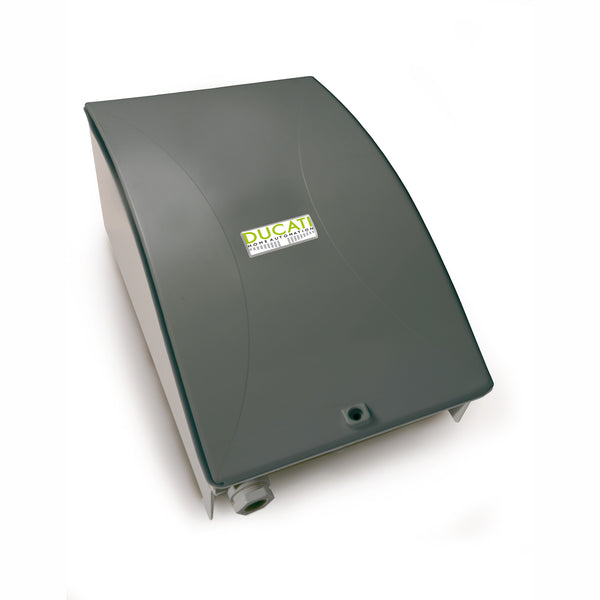

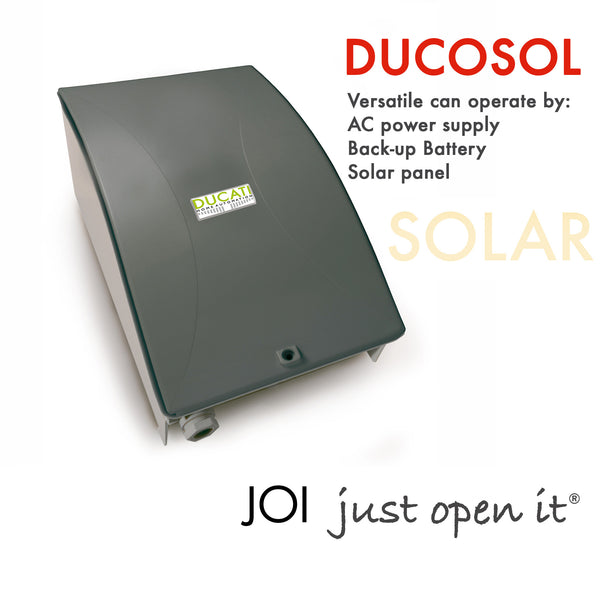

Ducati's DUCOSOL Technology control box

Versatile, can operates by 3 type of power supply

A.C. 110/230V 60/50Hz
By emergency battery
By solar panel

Ideal for residential use and ensures 100% autonomous use even where AC power is unavailable.

Double speed with SOFT STOP
SOFT STOP adjustment: you can postpose/anticipate the slowdown phase
ASR Auto reversal system: inverse mouvement by obstacle detection while closing
DUCO SAFE: Obstacle detection sensitivity adjustment

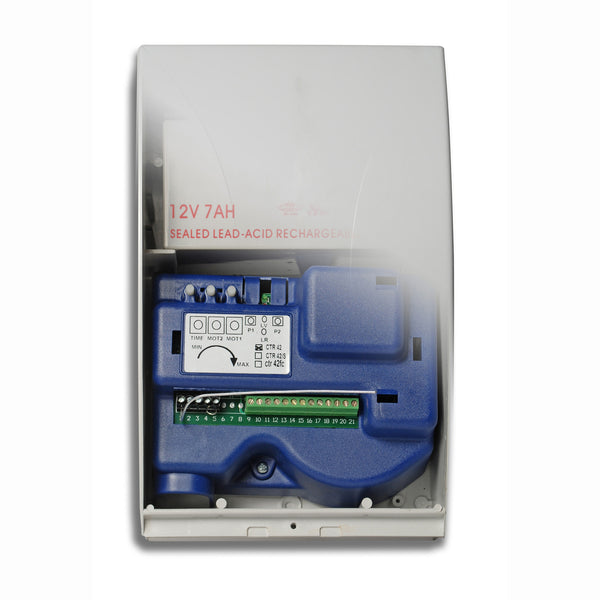

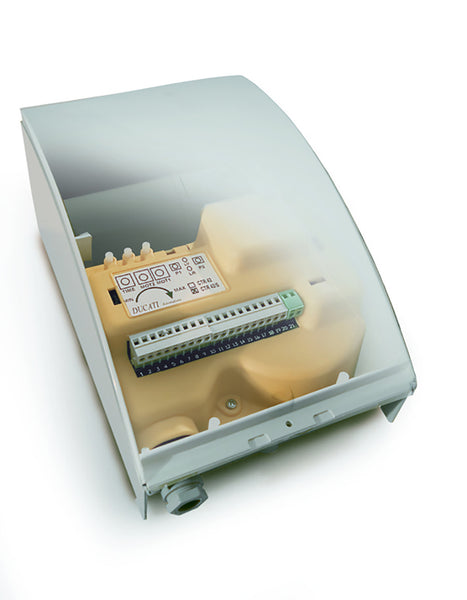

Control unit with integrated battery housing compartment
Integrated battery charger on board: just ready for connection to a 12V emergency battery. In case of power failure works autonomously up to 3 days
Integrated solar panel management: the card is a just ready to operate autonomously powered by solar panel. Compatible to all standard 12V min. 7A battery & 12V min.10W solar panel. no extra module needed
Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
Status Warning light output: an external wired LED light can be connected to indicate if the gate is open, closed, closing or opening
Adjustment of the time lag between the two doors
Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) can be controlled by remote control or wired control.
Possibility of connecting an external timed courtesy light (example: garden light)
Electro-lock is not needed, but recommended for wing longer than 2,8m each. Compatible with 12V electric-lock ( Booster required)
Easy self-storing of the remotes controls by pushing one button
Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid

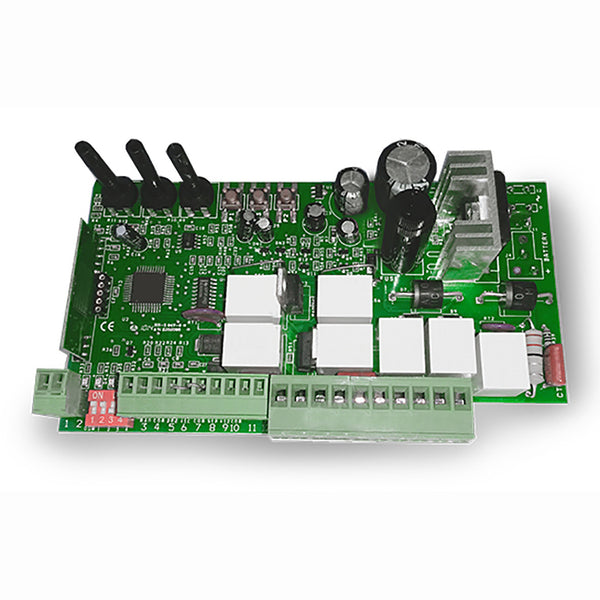

Comes with toroidal transformer, electronic board CTH48/12V featuring DUCATI's rolling coded radio transmission ( on board radio receiver & antenna cable).
On board solar panel & battery charge management

MOTOR COMPATIBILITY:

compatible with all DUCATI's 12V actuators

ACCESSORIES COMPATIBILITY:

DUCATI's rolling coded remote controls,
key switch NO ( normally open contact)
special low consumption 12V photocells model 7120 or any photocells with NC contact and 12V power imput ( Warning by solar panel main power supply it is mandatory to use original low consumption 7120 Ducati photocells to ensure long lasting autonomy)
12V bulb blinker
12V min. 10W solar module & min.7A 12V battery
MPBAT battery charger with european plug & charge control

Ideal for a safe, quick and easy installation: the system is electrocution risk-free.
Low consumption technology: only 7mA stand-by consumption! Protect the environment, reduces waste of energy, save money.
Ensure long lasting autonomous use ad reliability. up to 40 daily cycles guaranteed even in worst winter weather.

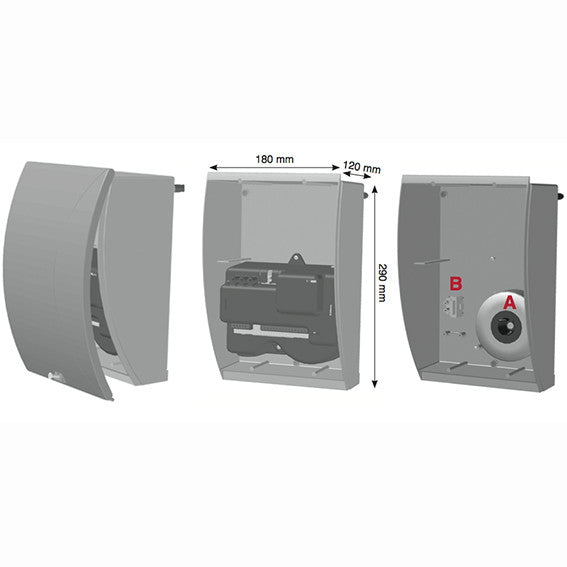

Control unit with integrated battery housing compartment: can fit any battery up to maximal dimension : 9cm x 15cm x 9,5cm h. 2 12V 7A batteries must be fitted in external housing compartment ( not included)
Integrated solar panel & battery management: the card is a just ready to operate autonomously powered by solar panel. No need to add any extra module
standard battery use: when you'll need to replace the battery ( about each 2-3 years of use) you can find it anywhere a we do not use customized expensive batteries
Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step mode (push to open & push to close).
Easy self-storing of the remotes controls by pushing one button
Adjustable motor power
Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing)
Made in Italy - All components are manufactured in the company to warranty high quality and reliability. After sale service and assistance provided directly by manufacturer without intermediaries
Quick and easy installation
CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing. In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

CTH48 ELECTRONIC BOARD TECHNICAL DATA

(solar panel & battery management on board)

Main power supply	By AC power supply/ ByAC power supply + back-up battery/ By 12V min 10W solar module + 1x 7A 12V battery Note: the control box is always supplied with an additional toroidal transformer 230-240V /50-60Hz or (110V/60Hz). Select the desired version while ordering)
toroidal transformer's Watts	105W
protection fuse	√10AF

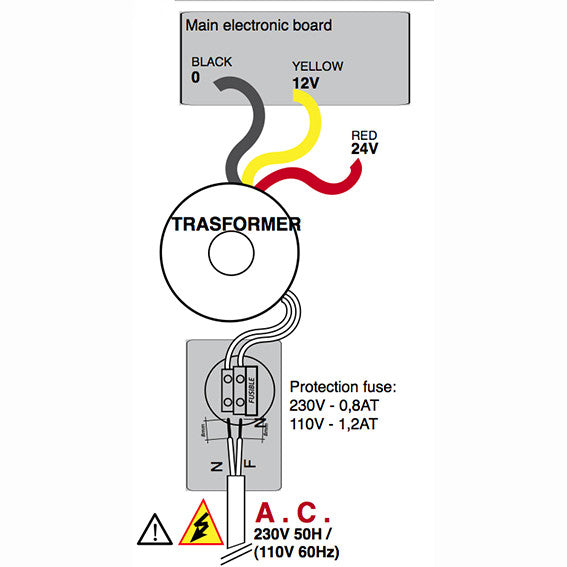

transformer protection fuse	0,8AT (1,2AT for 110V transformer)
use on single or double wing gate	√
output services	12V
stand-by power consumption	7 mA
radio receiver	2 channels ( 1 for full cycle opening, 1 for pedestrian access- partial 1 wing opening)
remote controls channels storage capacity	20 codes
radio transmission protocol	DUCATI rolling code
radio frequency	433,92MHz
remote control automatic learning	√
On board antenna	√
external antenna input	√
automatic closure working mode	√ with adjustable pause time up to 100 sec.
step by step working	√ one pulse to open; one pulse to close
motor power adjustment	√ by potentiometer
Obstacle detection safety system (DUCO SAFE)	obstacle detection
In compliance with EU-CE norms	√
timerized courtesy light output	√
flashing light output	√ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening
electric lock output	√ booster is mandatory by battery/solar panel main power supply
safety beam-photocells input (NC contact)	√ NC normally closed contact Note: use of special low consumption photocells is recommended: use only DUCATI low consumption photocells model 7120
A full cycle START input (NO contact)	√
pedestrian cycle START input ( NO contact)	√
Emergency STOP input (NC contact)	√
